How to Create a Bookmark in Power BI

In this tutorial, you will learn how to use bookmarks in Power BI to create interesting and useful reports. Bookmarks were introduced a few months ago and they can be very useful to capture key data and create powerful reports.

In this example, we will be creating a report with bookmarks that show the sales data for four individual countries. To start, let’s take a simple dataset containing Sales columns.

Power Bi Columns

If you put the data in a table visual, you will see that the data represents sales in four countries: Canada, France, Germany and Mexico:

Power Bi Countries

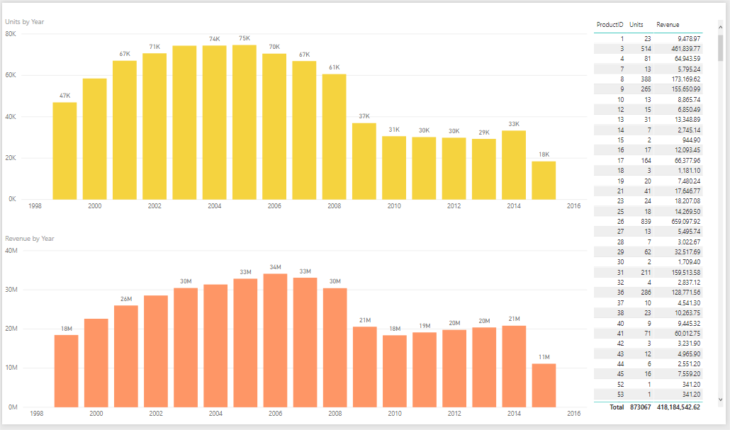

This report contains three visuals:

  1.  Units by Year, Quarter, Month and Day
  2.  Revenue by Year, Quarter, Month and Day, and
  3. A table visual showing unit sold and revenue by ProductID

Power Bi Productid

To view the data by country, we will be adding a Slicer and Bookmark for every country.

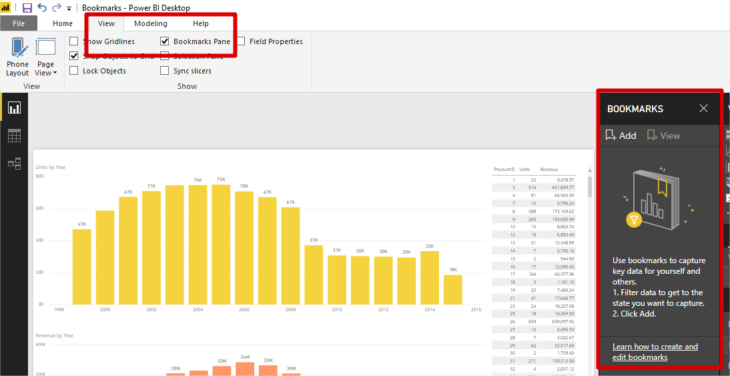

Start by enabling the Bookmarks Pane. Go to the View tab and check the Bookmarks Pane box, where it will appear next to the Visualizations Pane.

Power Bi Bookmarks

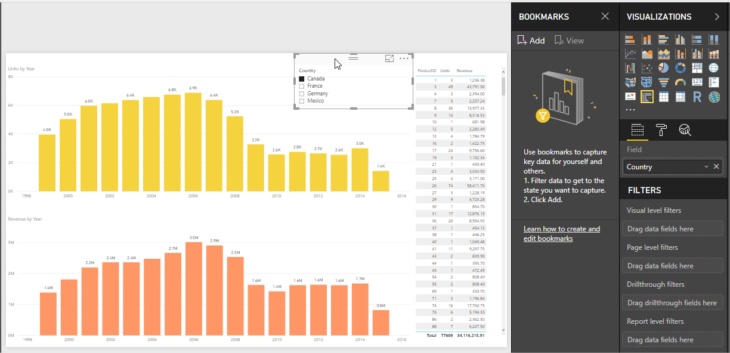

Before you create the Bookmarks, you first need to add the Country Slicer.
Power Bi Slicer

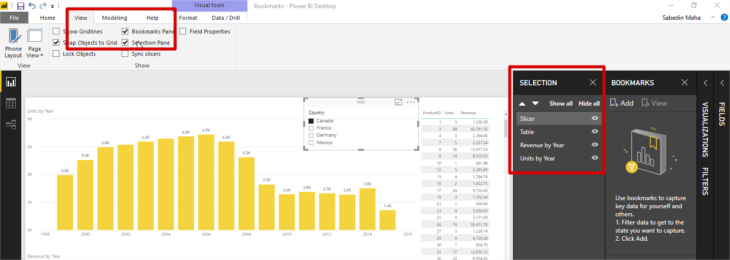

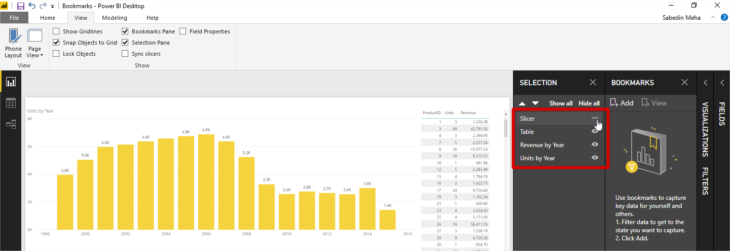

You don’t need to see the Slicer in the actual report, so go ahead and remove the Slicer in appearance (not selection) by adding the Selection Pane and hiding the Slicer.

Power Bi Hide Slicer

Power Bi Hide Slicer 2

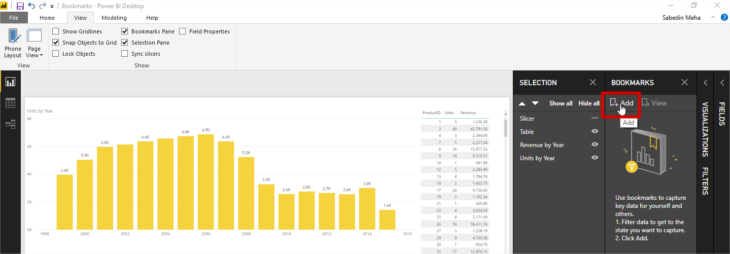

Now, we are ready to add the Bookmarks. Click Add:
Power Bi Click Add

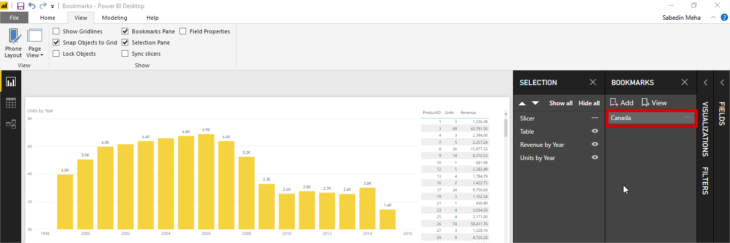

Since the report presents Canada data based on the Slicer selection, rename the Bookmark from Bookmark1 to Canada.
Power Bi Bookmark 1

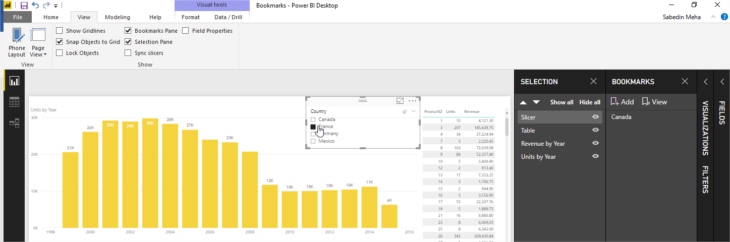

To add the three other bookmarks, you need to show the Slicer. Follow the same steps as above and make the selection first, then hide the slicer and create the bookmark.
Power Bi France

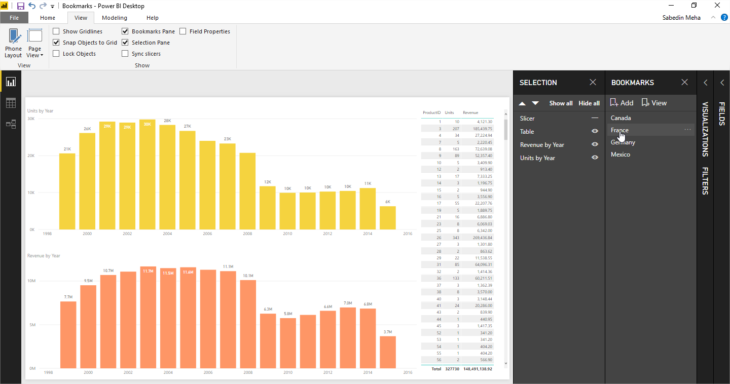

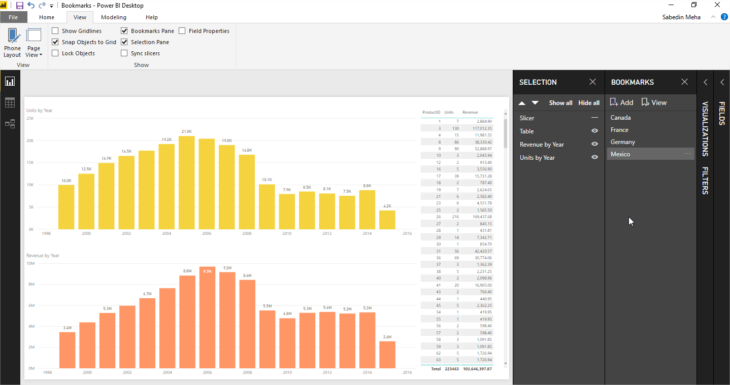

Once you add all four bookmarks, you can see what they represent by clicking each of them in the Bookmarks Pane.
Power Bi Bookmarks Pane

Power Bi Bookmarks Pane 2

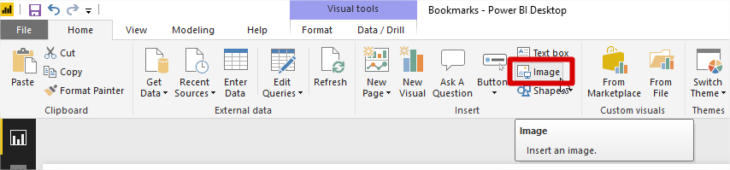

Next, we will be creating a “Landing Page” for your report to add the flags of each country and then link the flag images to the bookmarks we just added. On the Home tab, click the Image button.
Power Bi Image

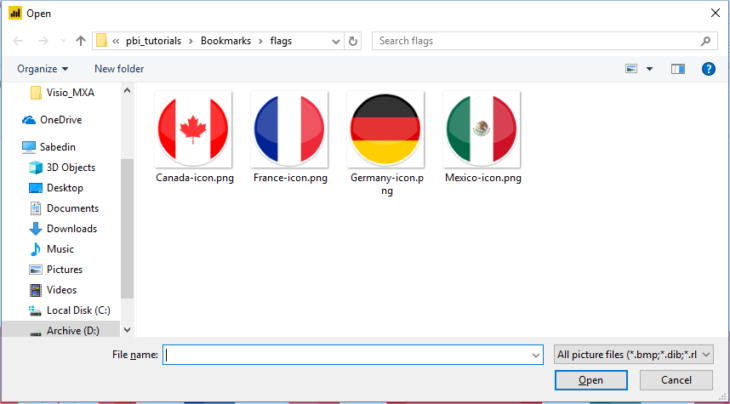

Open the file dialog box that appears and select the images you want to use. In this example, we have already downloaded the four flag images and they are ready to be used.
Power Bi Flag

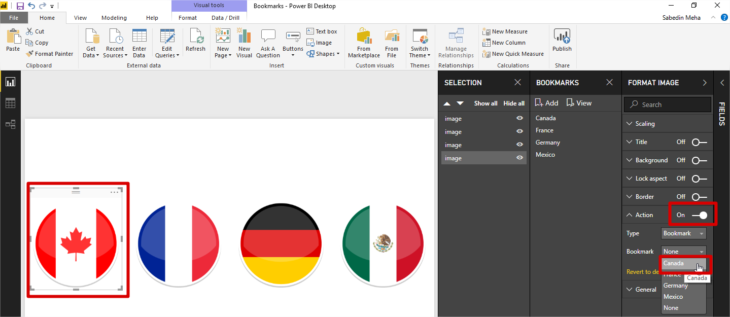

To link these images to their respective bookmarks, select the first image of the Canadian flag. Go to the Format Image Pane, set the Action button to On, select the Type: Bookmark and then select the Canada Bookmark.

Repeat this process for the other three countries.
Power Bi Canada

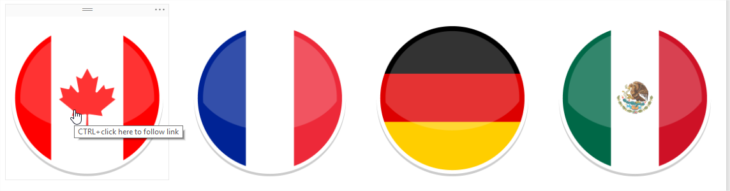

By using Ctrl+Click, you can navigate to the specific bookmark of your choice.
Power Bi Repeat

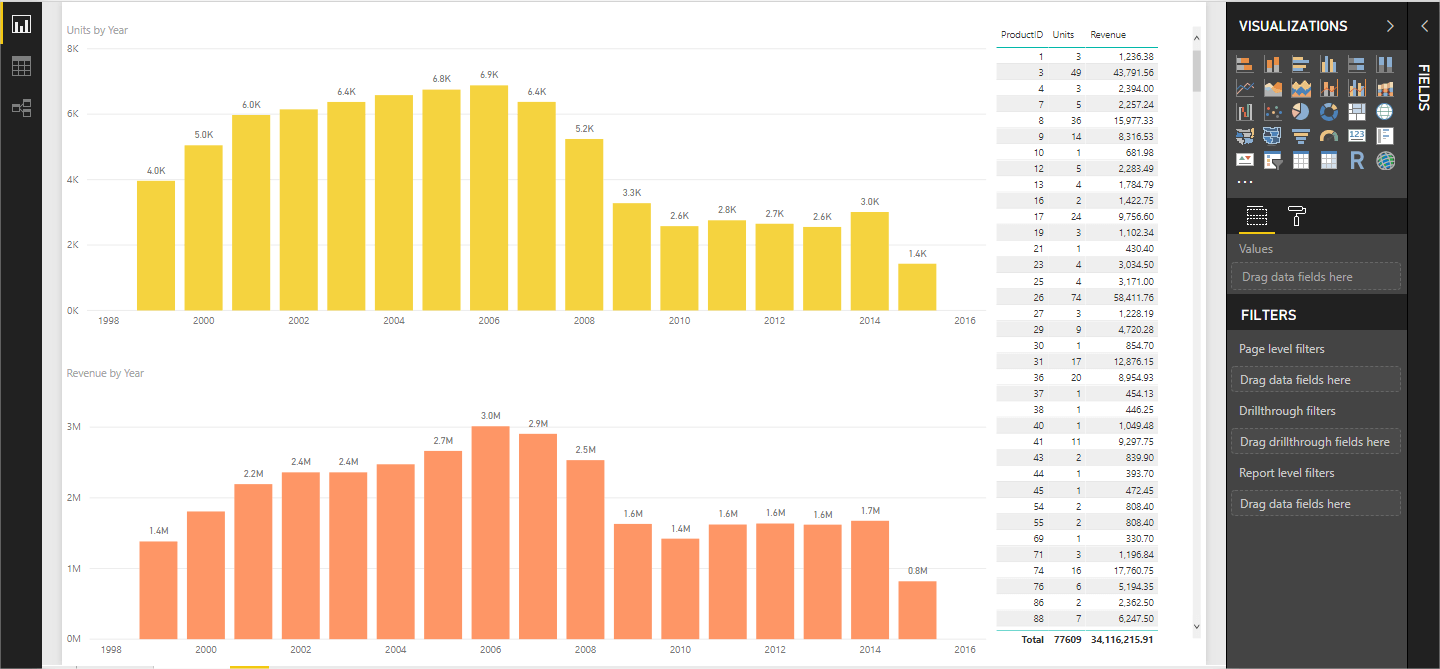

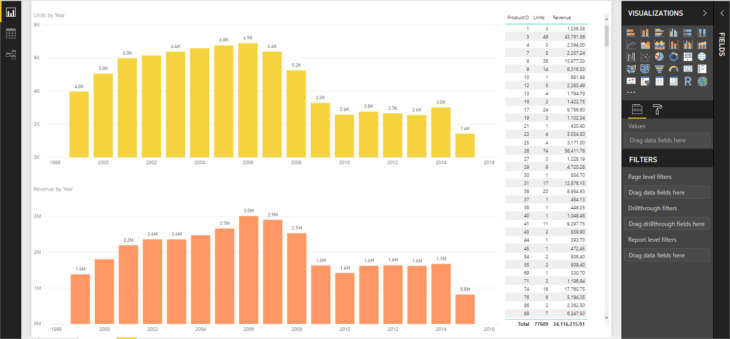

Power Bi Final

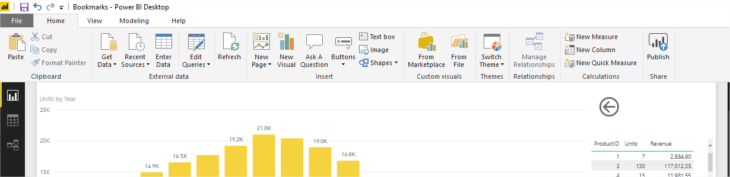

The final piece of this report is the Back button, which will allow you to navigate back to the first page. To add a Back button, click Buttons and the Back icon in the dropdown. You can add it anywhere in your report.

Power Bi Back

Power Bi Back 2

Now, you can play around with the report by using Ctrl+Click to navigate back and forth to each bookmark and the initial page with the flag images.
